Brand Name : Net Electric Power
Certification : ISO9001 45001 14001
Place of Origin : China
MOQ : 100
Payment Terms : T/T,L/C,D/P
Supply Ability : 100pices/per
Delivery Time : 5-8 Work days
Wellhead cable rollers are specifically designed for underground or shaft cable-laying operations, aiming to protect both the cables and the pulling ropes at the wellhead. These rollers minimize friction, prevent abrasion, and alleviate the tensile stress exerted on the cables and ropes, thereby ensuring a safe and efficient installation process.
| Item No. | Model | Rated Load (KN) | Applicable Cable Diameter (mm) | Weight (kg) |
|---|---|---|---|---|
| NET107 | SH130S | 10 | ≤Φ130 | 12 |
| NET108 | SH200S | 10 | ≤Φ200 | 13 |
| NET109 | SHH1L | 10 | ≤Φ80 | 7.2 |
| NET110 | SHH1N | 10 | ≤Φ80 | 6.2 |
| NET111 | SHH3N | 10 | ≤Φ80 | 6.2 |
| NET112 | SHL450J | 10 | ≤Φ100 | 9 |
| NET113 | SHL700J3 | 10 | ≤Φ160 | 14 |
| NET114 | SHL700J6 | 20 | ≤Φ160 | 23 |
Supplementary Information
All listed models have been meticulously engineered to withstand standard operational loads at the wellhead, with rated load capacities ranging from 10 kN to 20 kN.
Thanks to a broad range of compatible cable diameters—spanning from ≤Φ80 mm to ≤Φ200 mm—these rollers are capable of effectively supporting cables of various specifications utilized in mining operations, tunnel excavation, and shaft construction projects.
Their compact and lightweight design (with a self-weight starting at just 6.2 kg) ensures effortless transport and installation at the job site; furthermore, for applications requiring higher load capacities, we also offer heavier-duty model options (such as the SHL700J6).

|
|

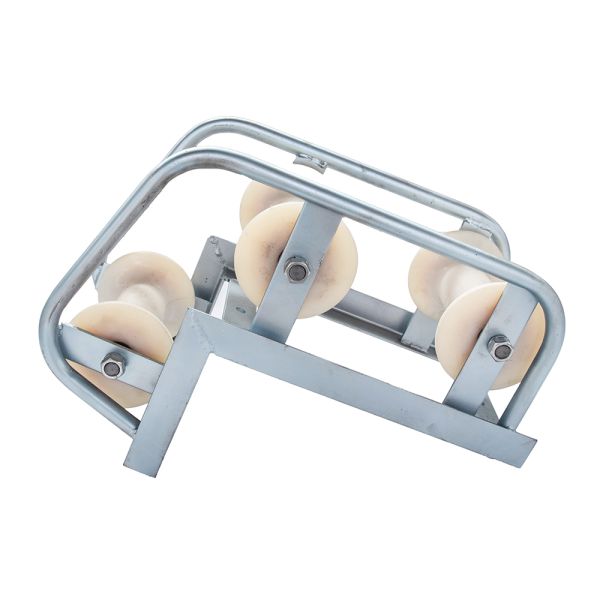

Cable Pithead Roller Multi-Roller Pithead Roller Images |
